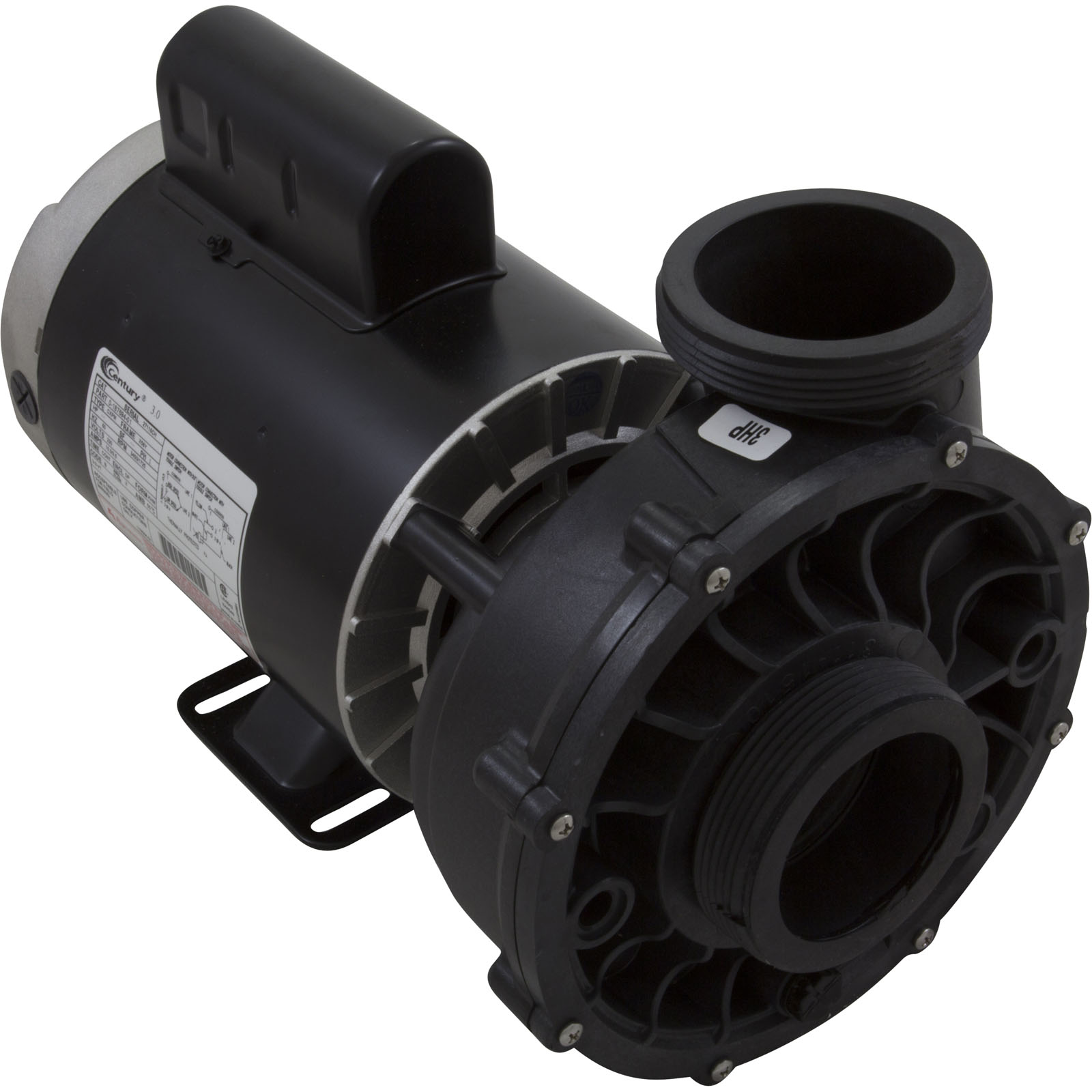

3721221-1VHZW Pump WW Viper3.0hp Century 230v2-Spd56fr 2-1/2

When matching pumps always use AMPERAGE rather than Horsepower. Many times the labeled Horsepower does not accurately represent actual horsepower.

The Viper has a dual speed motor with four sets of insulated windings for increased efficiency, and a 2-1/2 intake and discharge

Spa Pump Features:

• Viper wet end designed specifically for 56-frame motors
• Two double shielded ball bearings with moisture resistant grease for quieter operation and longer life
• Two speed motors have four sets of insulated windings for increased efficiency
• 56-frame motor for added strength, cooler operating temperature, and longer motor life
• Large 2-1/2" intake for improved flow performance and reduced noise
• Large 8" diameter wet end for increased volume capacity

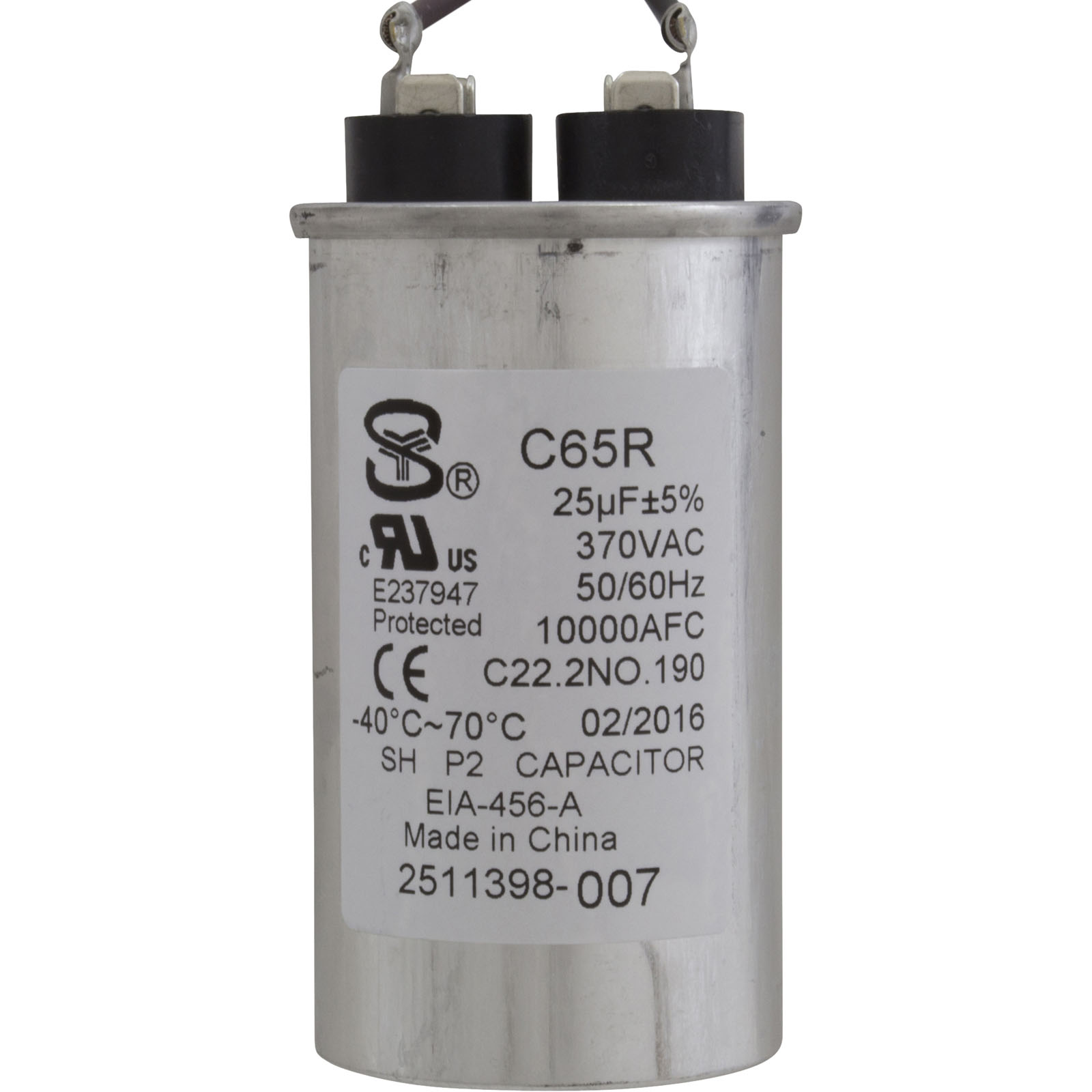

• Split capacitor, (start and run) for less energy consumption
• Thermally protected to extend life expectancy of motor
• Highly versatile wet end can be rotated every 90 degrees
• Dimensions (H x W x L): 9.08" x 8.05" x 15.72"


• California Title 20 Compliant

Attention:

• Motors and Pumps with Horizon numbers ending with W or N carry a 1 year warranty from date of manufacture.
