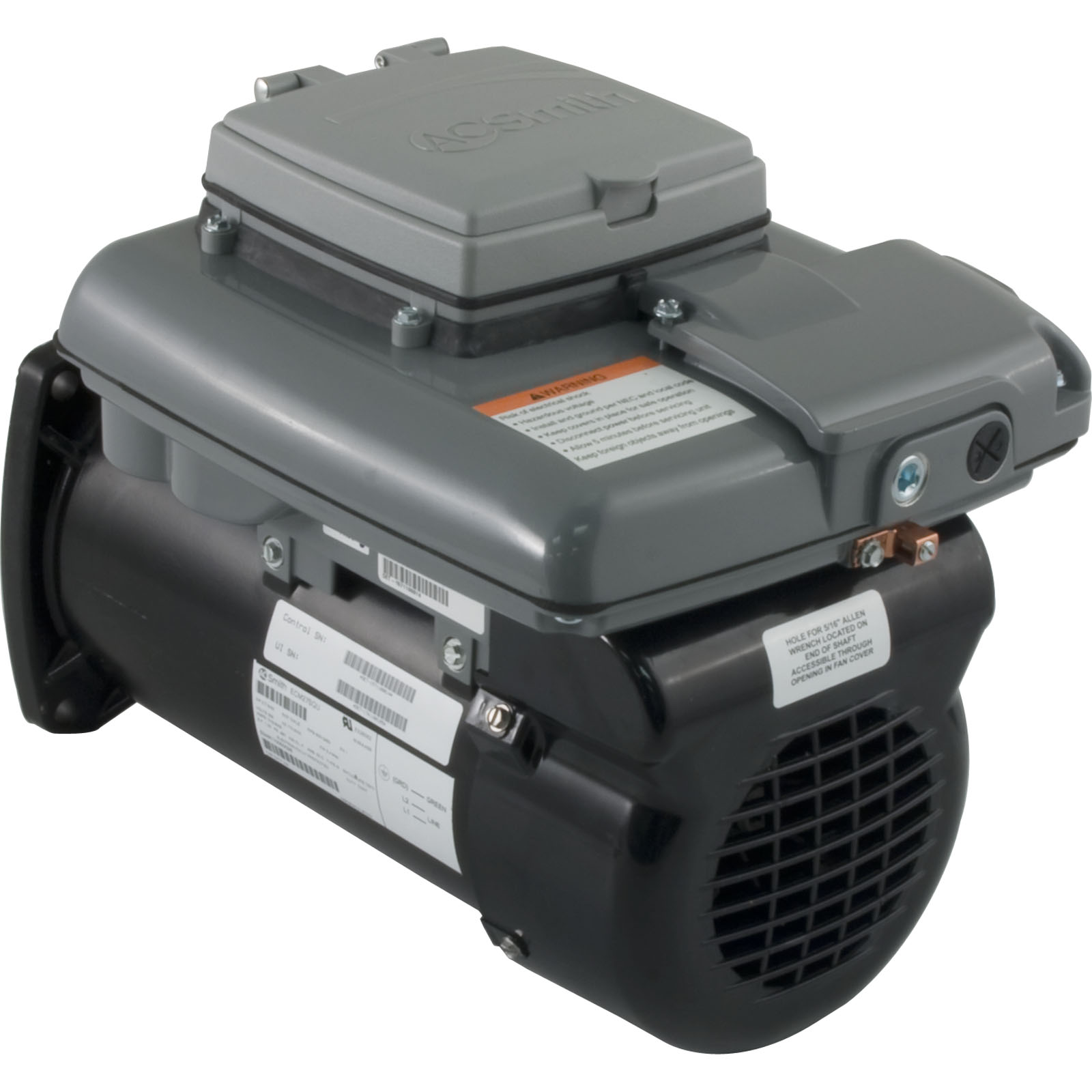

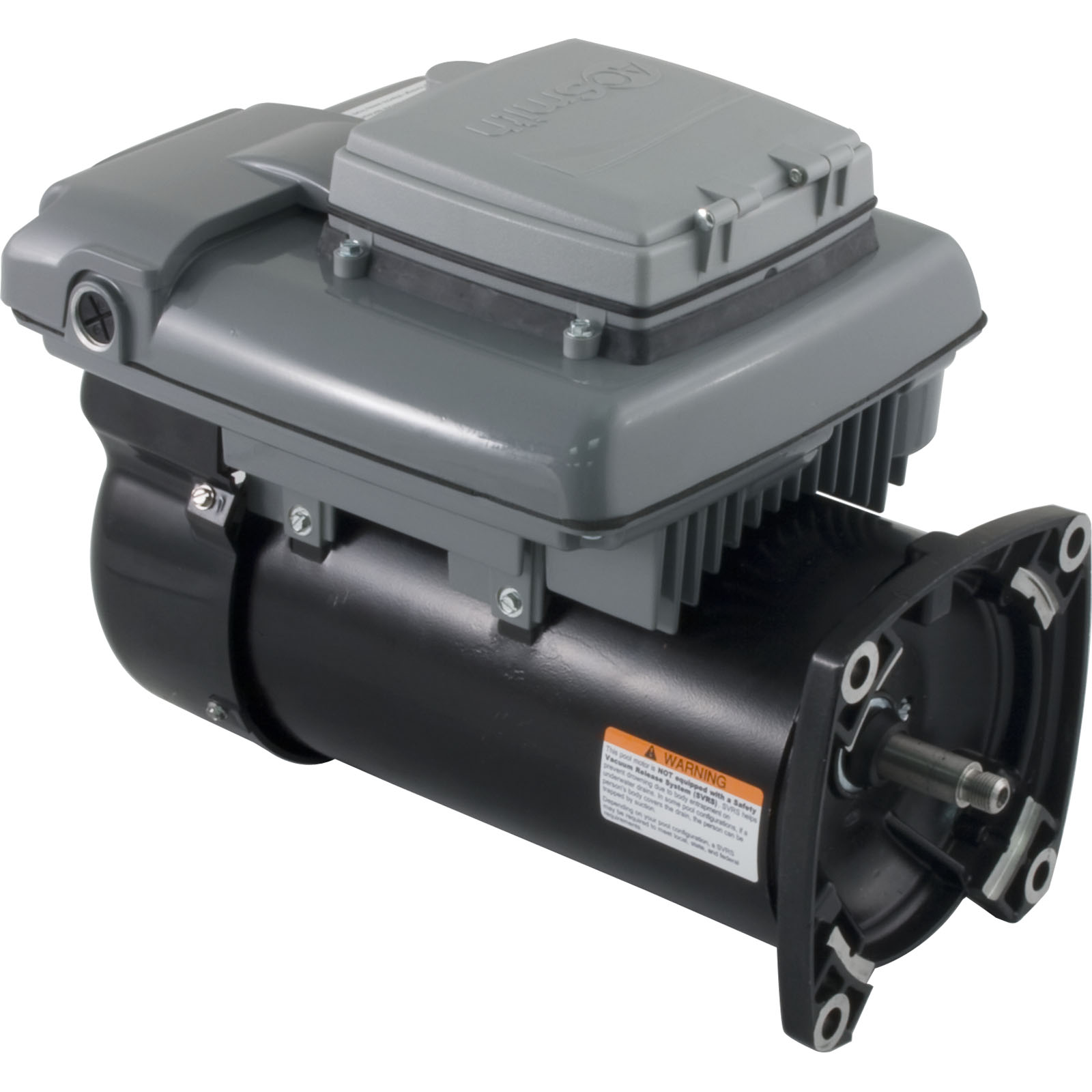

ECM27SQU Motor Century0.75-2.7hp230vVar-Spd48frSQFLV-Green
Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,SQFL,V-Green
Availability: Out of stock
SKU: 35-126-1270
Manufacturer part number: ECM27SQU
- Integrated Timer Interface
- On- and Off-Board Mountable
- Interface
- Timer Mode
- Manual Mode
- Freeze Protection
- Auxiliary Load Capacity
- Configurable Prime Settings
- Noise Reduction Design
- Adjustable Contrast
- Power Factor Correction
| - Factory Reset
- Battery Backup - Program Saver

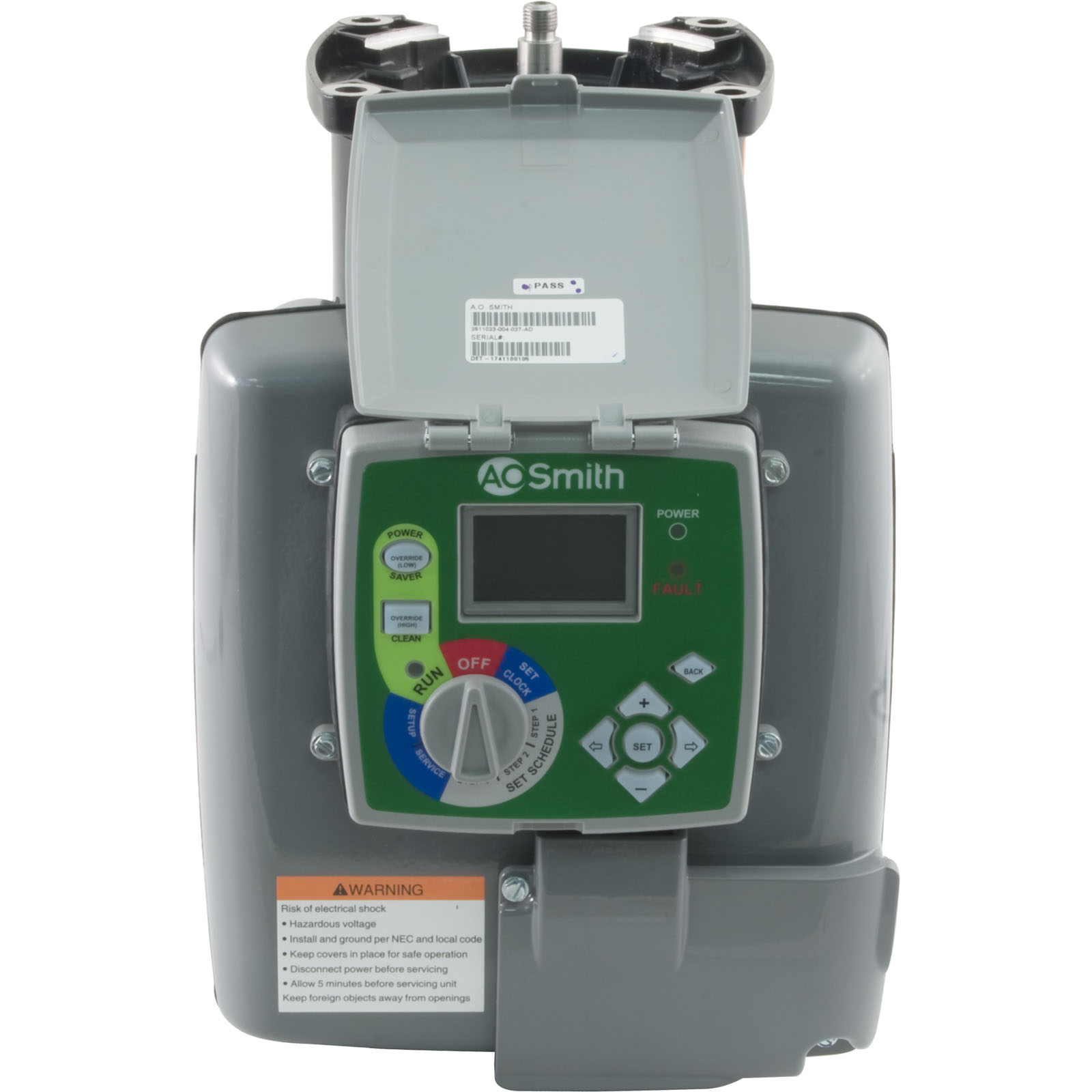

- LCD Display with Backlight
- Ball Bearing
- TEFC
- Rotation: CCWPE
- Single Phase
- 303 Stainless Steel Shaft
- Class F Insulation
- 50°C Ambient
- UV and Rain-Proof Enclosure
|
| | 35-126-1270 | THP
| 3/4 ~ 2.7
| RPM
| 3450/600
| Volts
| 230
| Service Factor
| 1.0
| Full Amps
| 10.5/0.5
| Load Number
| ECM27SQU
| Stock Flange
| Square
| Percent Energy Savings*
| 80% | Yearly $ Savings**
| $1,318.05
|
|
*Savings over the equivalent single-speed motor.
**Calculated @ $.23 per Kilowatt hour, pumping same amount of water as a single-speed motor, eight hours per day.
The reasons a V-Green® premium-efficiency replacement motor can offer such impressive savings
are numerous including:
- An integrated timer interface allows for easier installation and operation of a variable speed motor. The all-in-one design
reduces installation time and expense with no additional wiring required.
|  |
- The amount of horsepower required to move the water through the pipes drops much more quickly than the speed. While it
may take one horsepower to move the water through the pipes on high speed, it only takes 1/8 horsepower to move one half
as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount
of water as on high speed, the lower horsepower results in significant energy savings.
|
