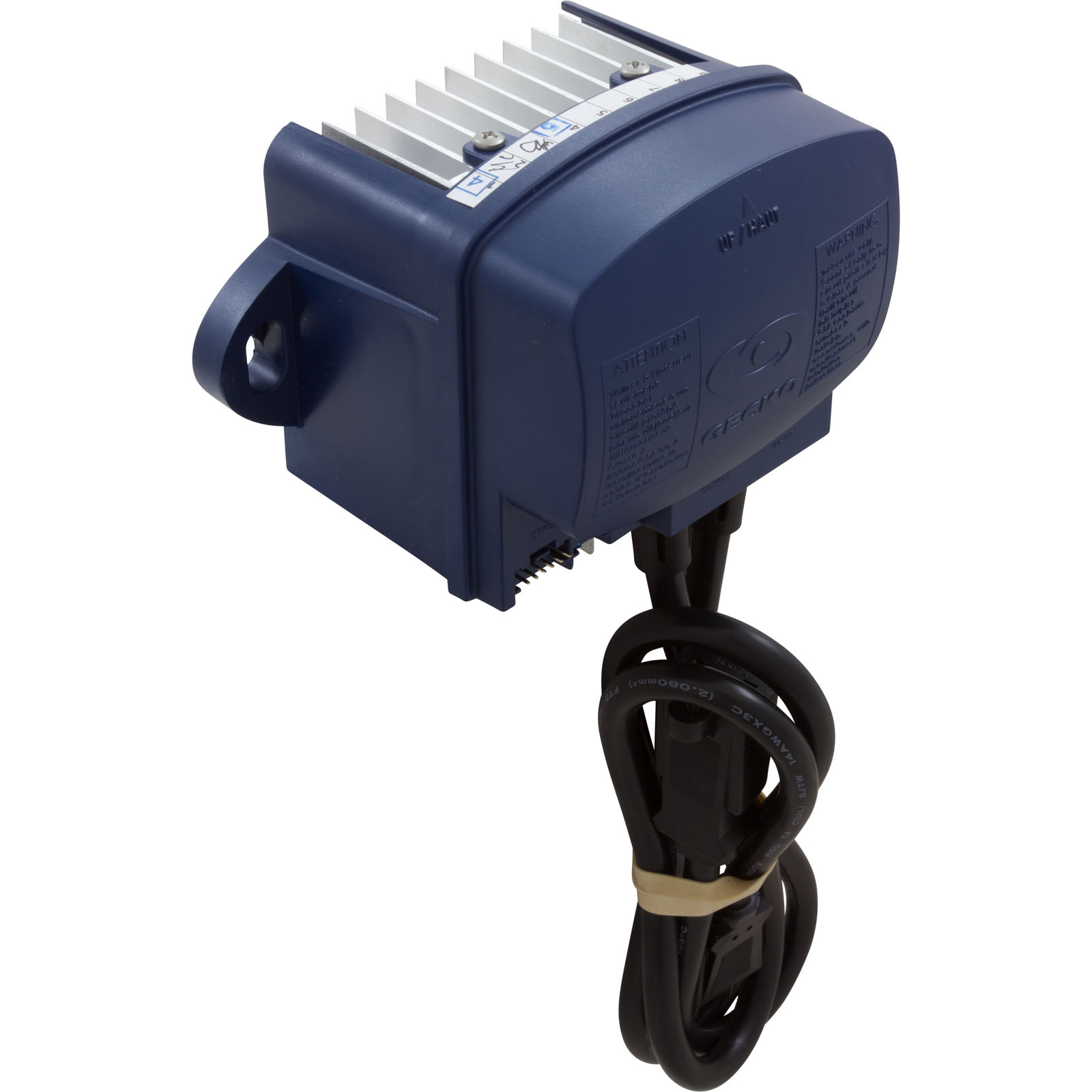

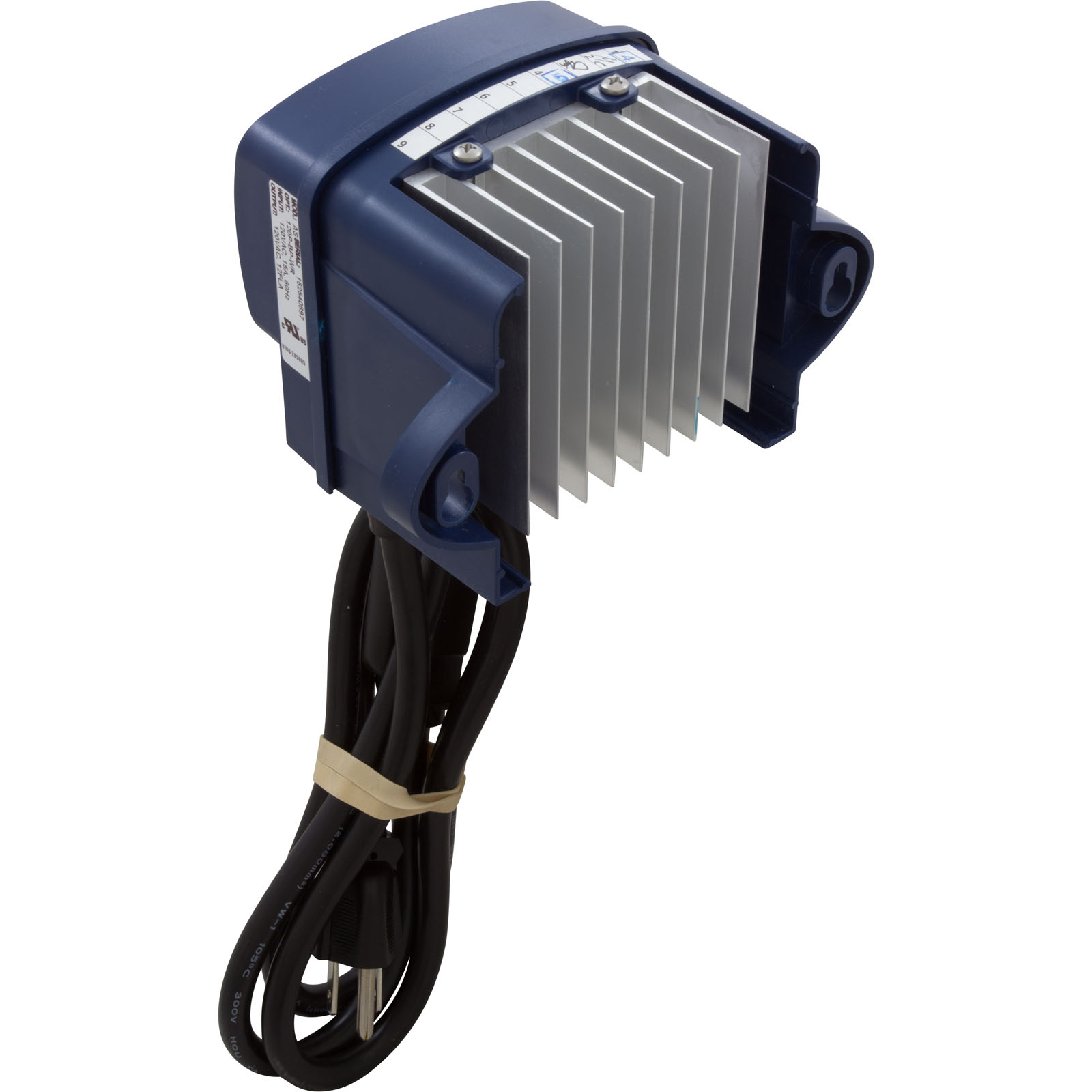

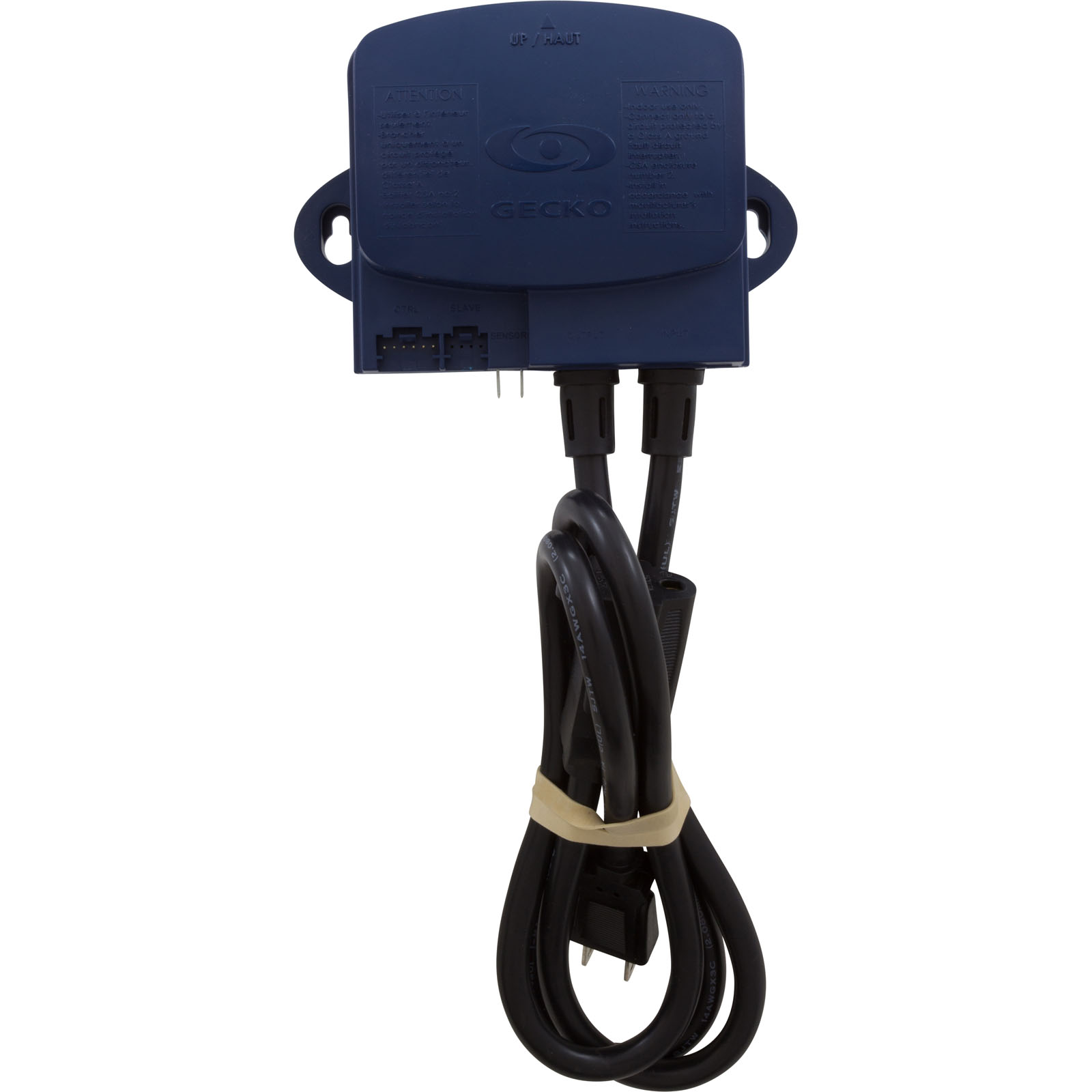

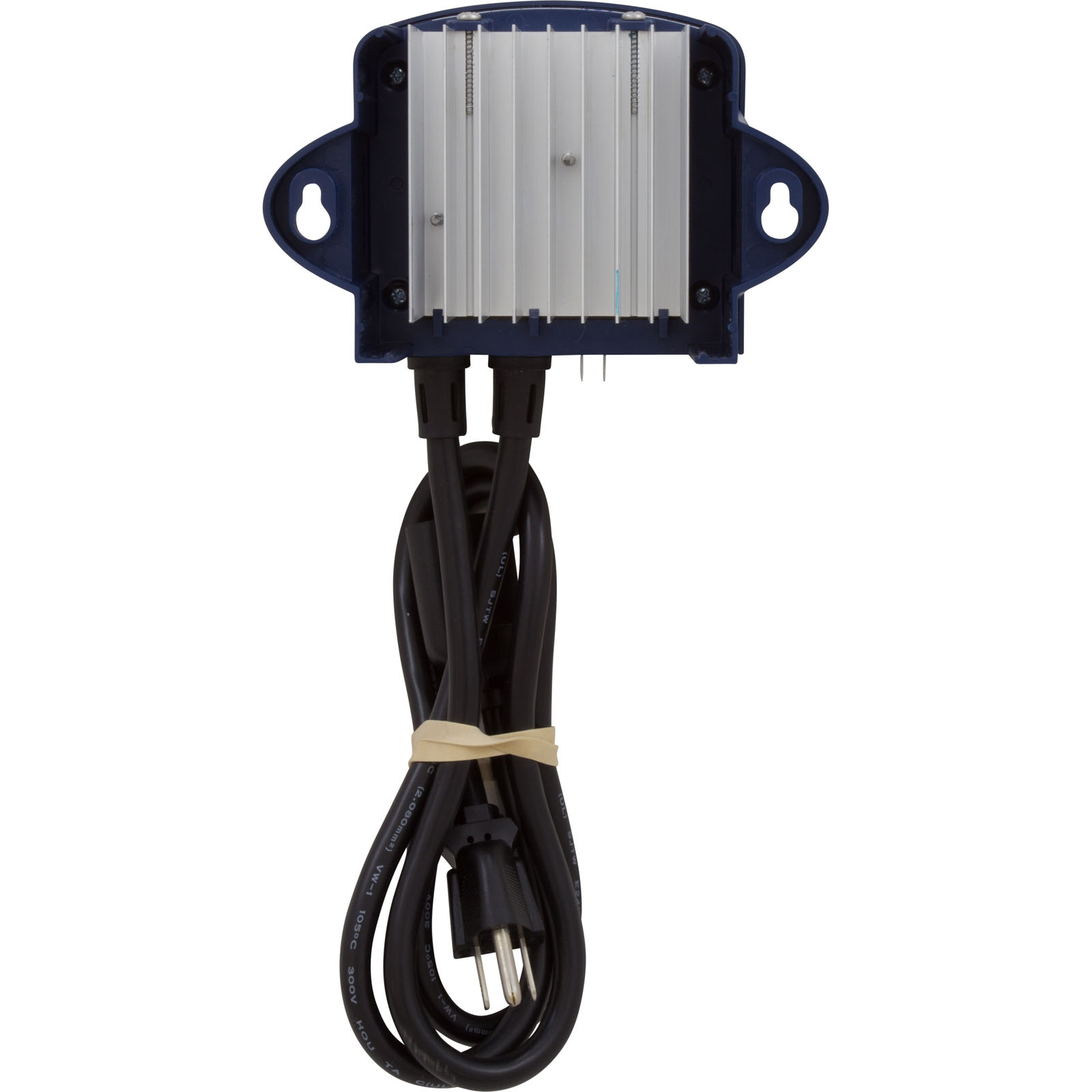

0108-205005 Ctrl ModuleGecko Airstreme AS-120P20 Min115v3ft NEMA Crd
Ctrl Module,Gecko Airstreme AS-120P,20 Min,115v,3ft NEMA Crd
Availability: Out of stock
SKU: 58-337-1165
Manufacturer part number: 0108-205005
Airstreme AS-120P Control Module for Variable Speed Blower:
Standard Features:
- Adopts the LiteStreme Series look!
- Can control a slave unit for combined system control.
- Selectable minimum & maximum power levels.
- Selectable runtime, purge time and purge idle period.
- Programmable features:
- Keypad model
- Purge options
- Purge duration
- Run time
- Minimum and maximum speed selection
- 64 speeds (Blower and Variable Speed Pump).
- Wave and pulse modes.
- 20 minutes default run-time.
- Water sensor level (optional)
Electric Specifications:
| Input: |
| 115 VAC, 60 Hz, 15 A |
| 115 VAC, 60 Hz, 12 A |
| Outputs: |
| Blower or Variable Speed Pump |
| 115 VAC, 60 Hz, 15A |
| Nema plug |
| Temperature: |
| Operational | 32 to 104°F (0 to 40 °C) |
| Non-Operational | -4 to 158°F (-20 to 70°C) |
|
|
|
| Low Voltage | •Keypad Connection |
| Innerconnection: | •Water level sensor |
| •Slave unit |
