54220-Z Ctrl BWG VS501Z P1 Bl Oz Lt 5.5kW115v/230vMini Oval

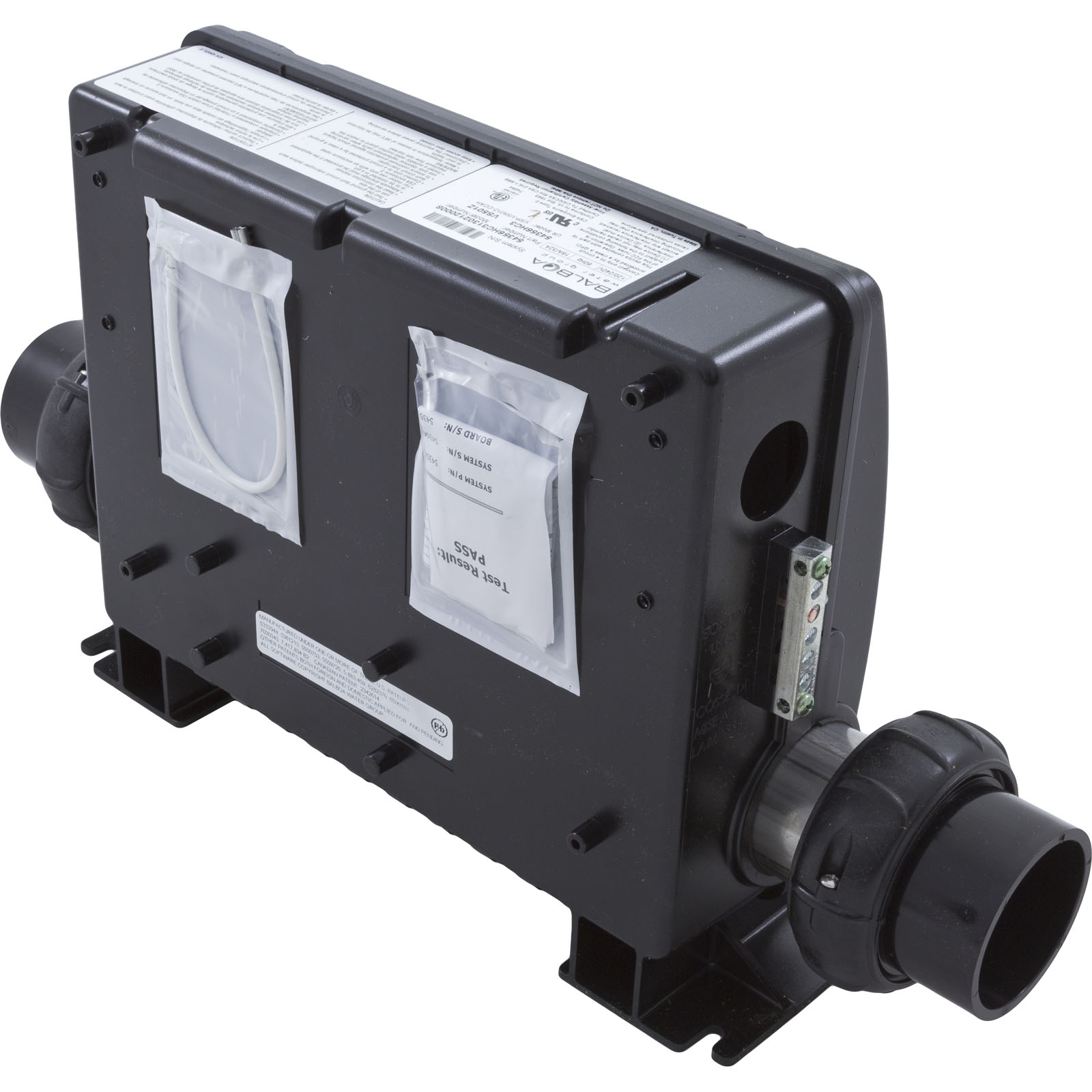

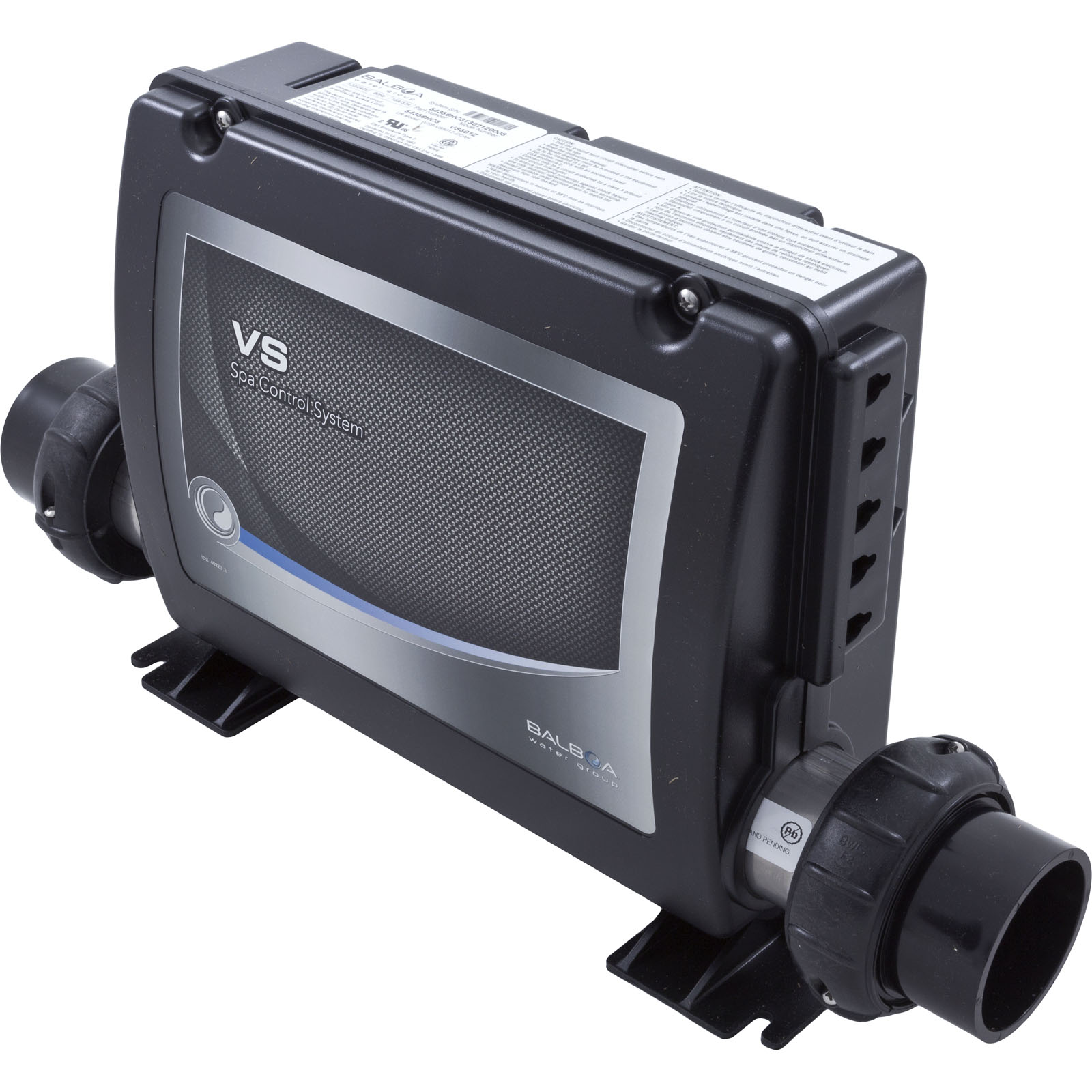

Balboa Water Group VS501Z Control System

Features:

• 115/230v Pump 1 circuit
• 115/230v Blower circuit
• 115/230v Ozone circuit
• 115/230v Circ Pump circuit (30GPM minimum)
• 1.4/5.5kW heater

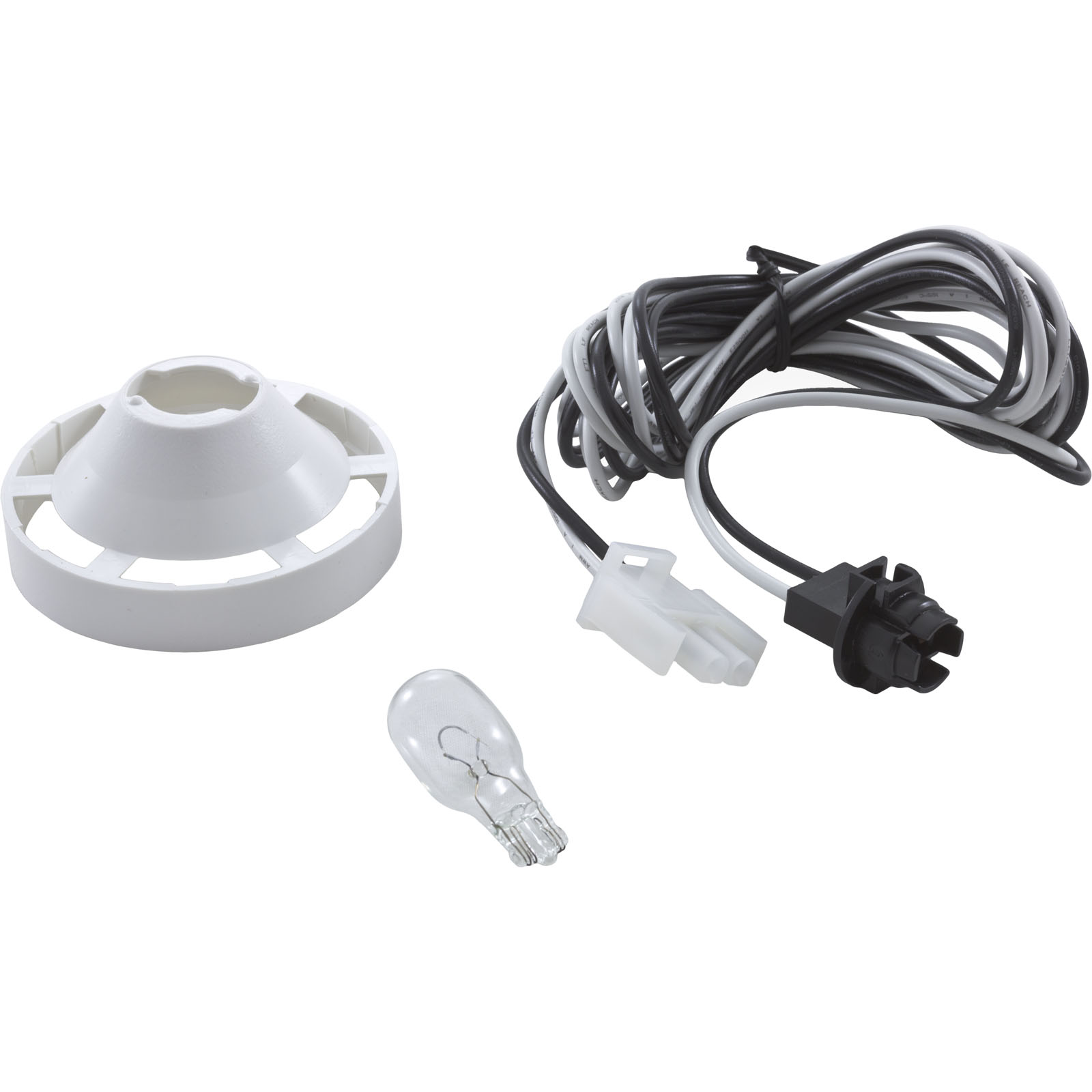

• 12v spa light circuit
• Patented M7™ technology
• Plumb on pressure or vacuum side

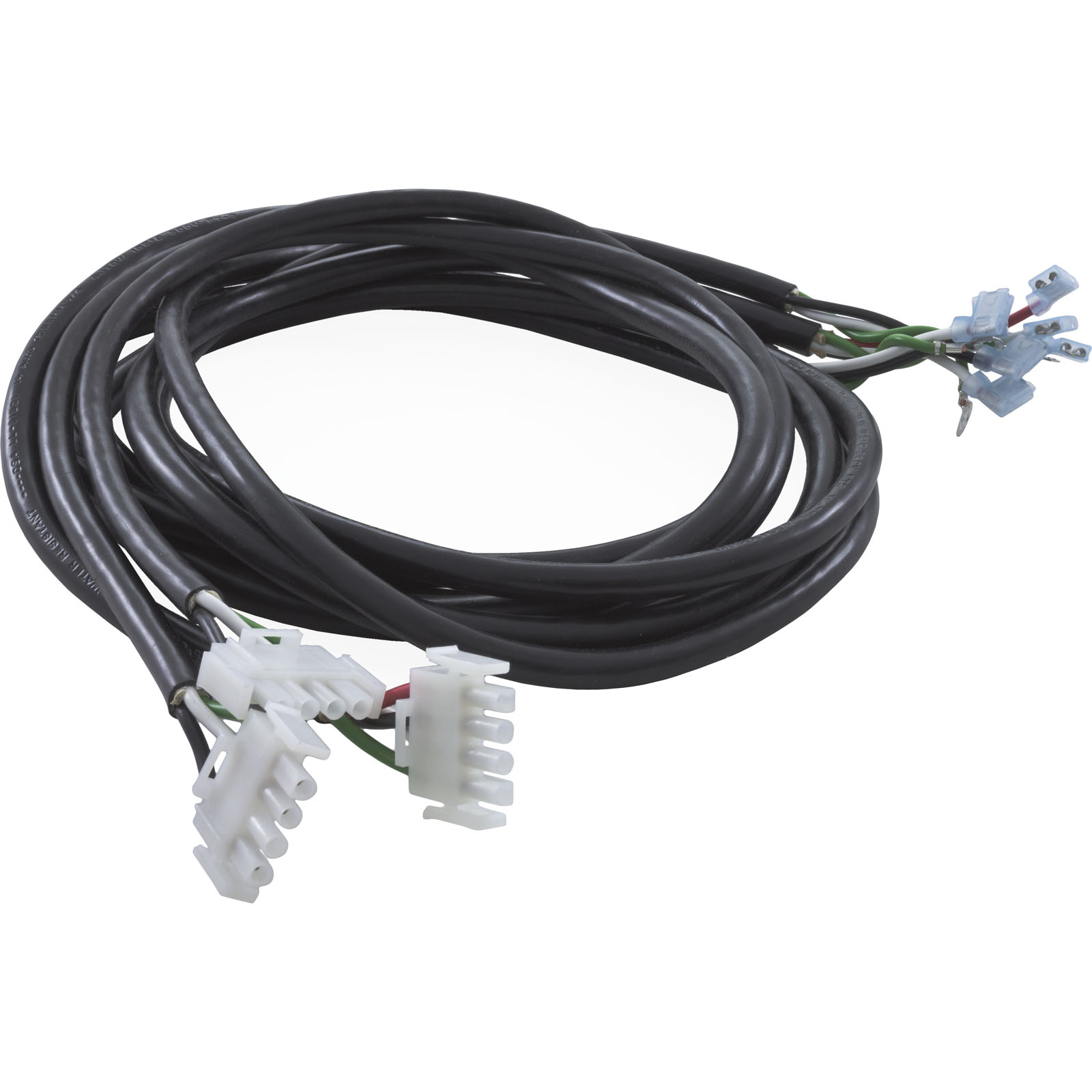

• Component cords included

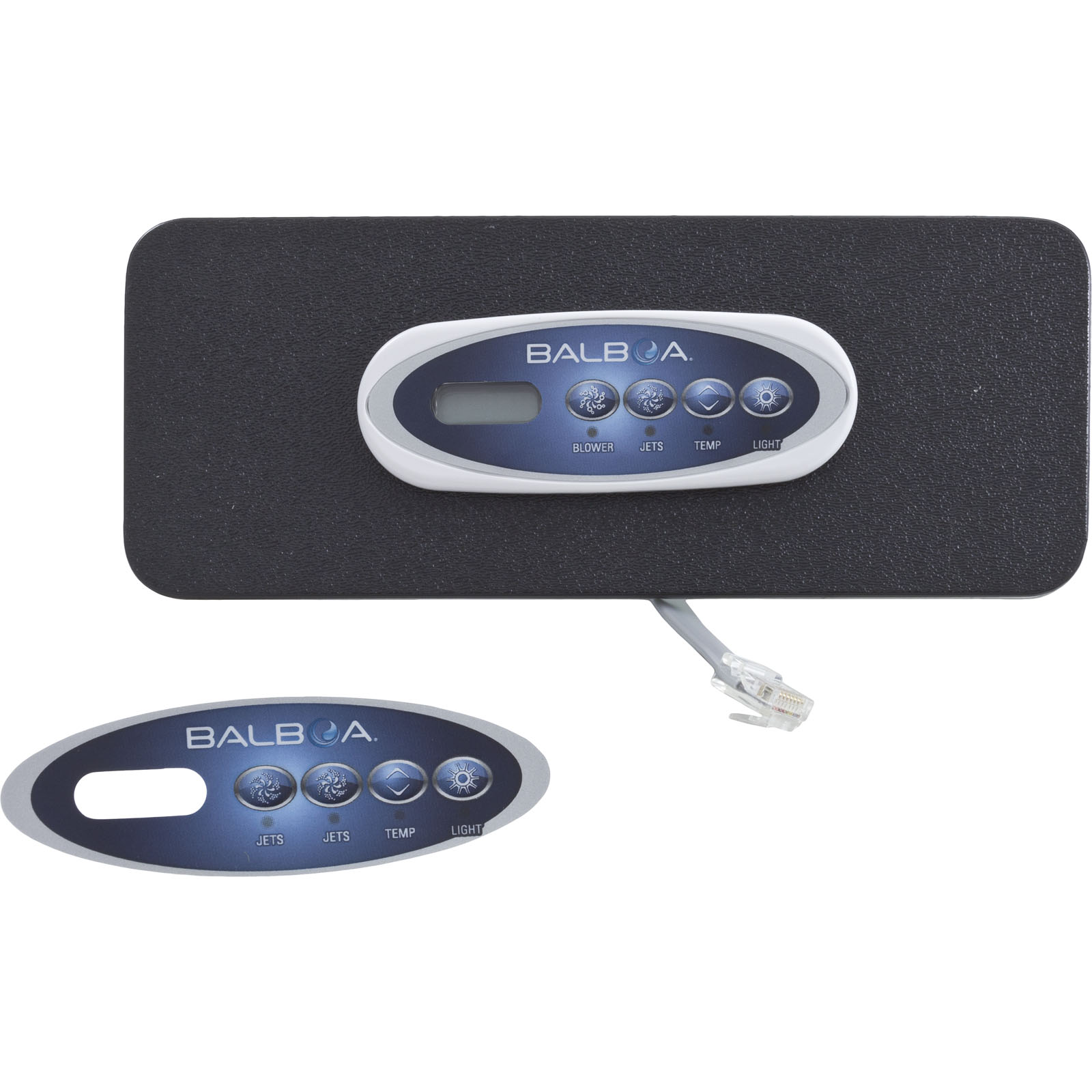

• Control panel included 58-138-1165
• US & Canadian safety approvals

The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service. The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.4/5.5kW heater and can support mini, duplex, or standard digital control panels.

Control Box Dimensions

Height

Width

Depth
