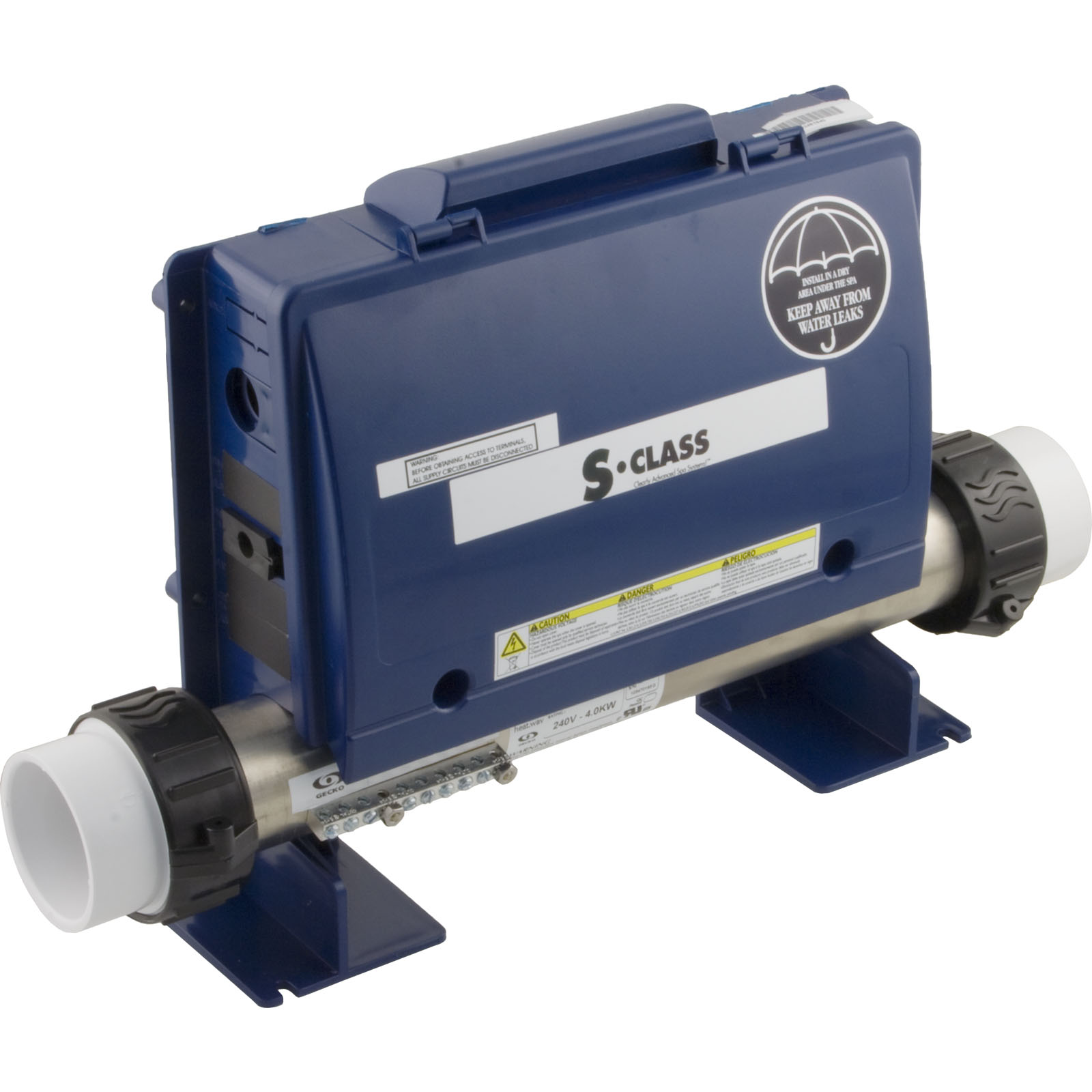

BDLSCTSC9 Control Gecko S-Class P1OzL 4.0kW 115v/230v TSC-9/K-9

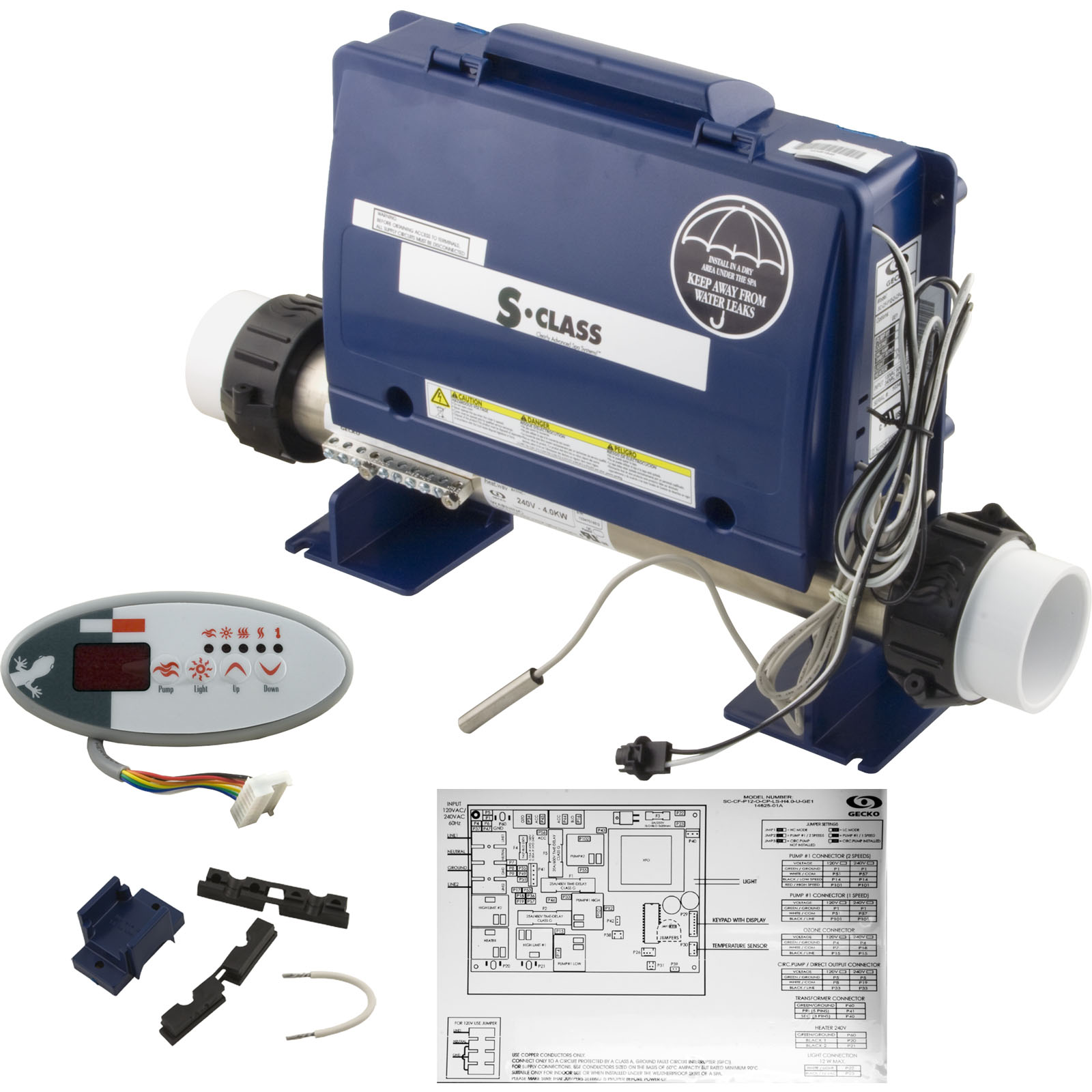

This S-Class spa control system provides all the accessories needed for an installation requiring a single pump, an ozonator, and light:

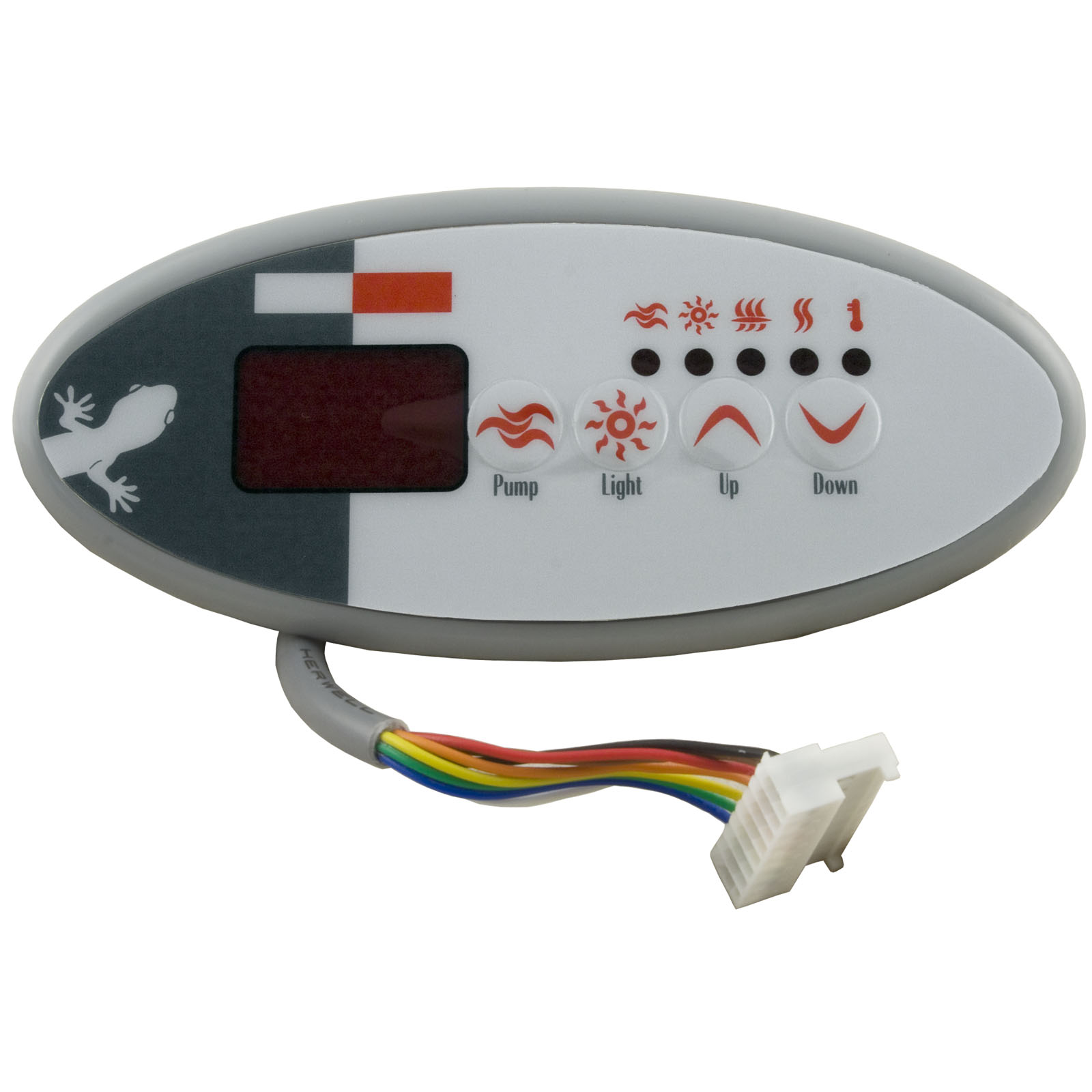

• TSC-9/K-9 Control Panel, Small Oval, 4-Button, 58-337-1525
• TSC-9/K-9 control panel dimensions 2-1/2” x 4”
• 2”x 15” Flow Thru heater, 1.0/4.0kW 115/230v
• Two-Year manufacturer’s limited return and repair warranty

Other features of this S-Class spa control include:

• Automatic time-out on all outputs
• Sensor failure detection
• Ozone management
• Programmable filter cycles
• High-limit protection
• Pressure switch failure detection
• Current limiting option
• Smart Winter Mode
• Temp. accuracy within ± 1°F
• Filter cycle over temp protection
• Does not use connector/connects direct to PWA
Control Box Dimensions



Height

Width

Depth
