54217KIT Control BWG VS501ZP1 P2 1spd or Bl 4kW115/230vVL401

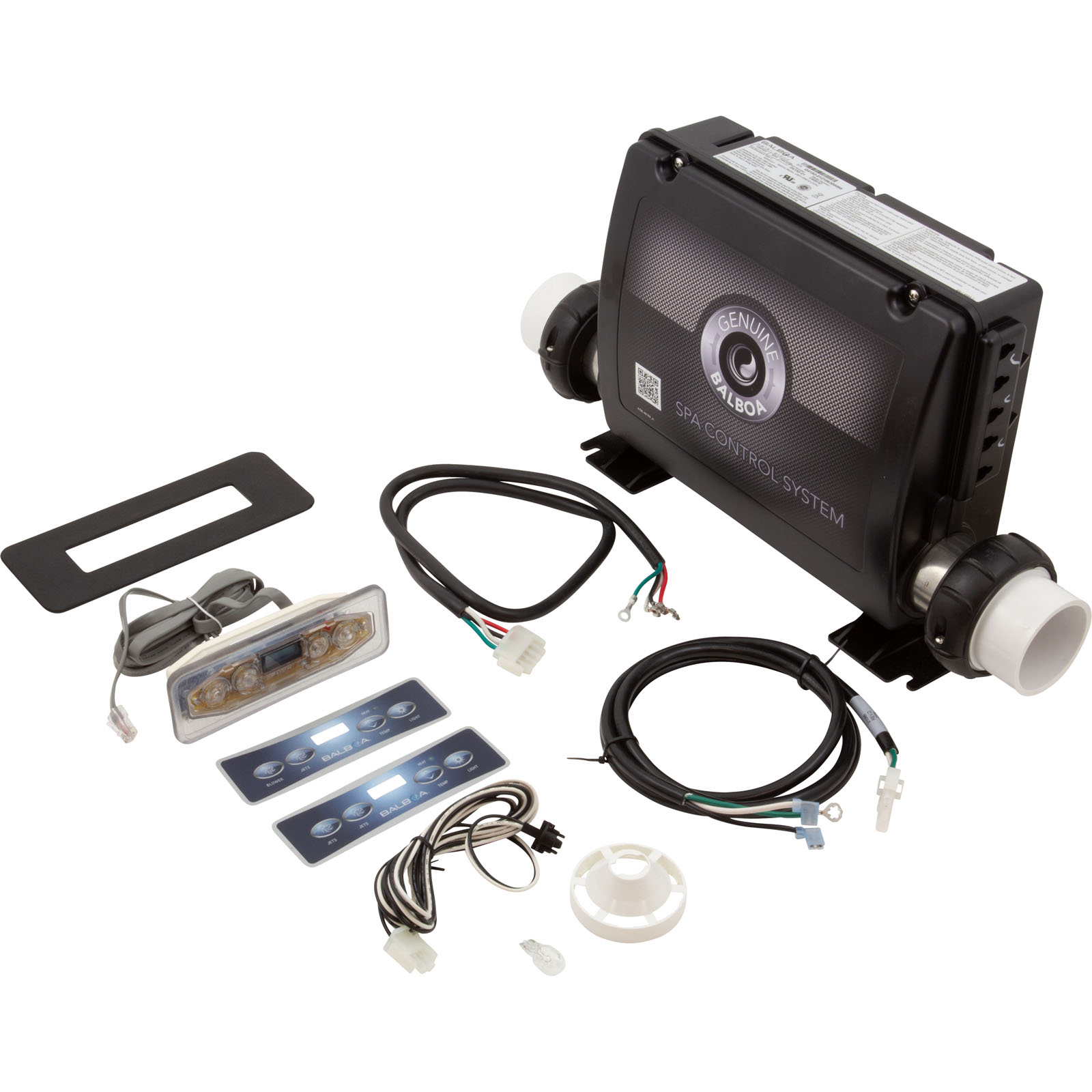

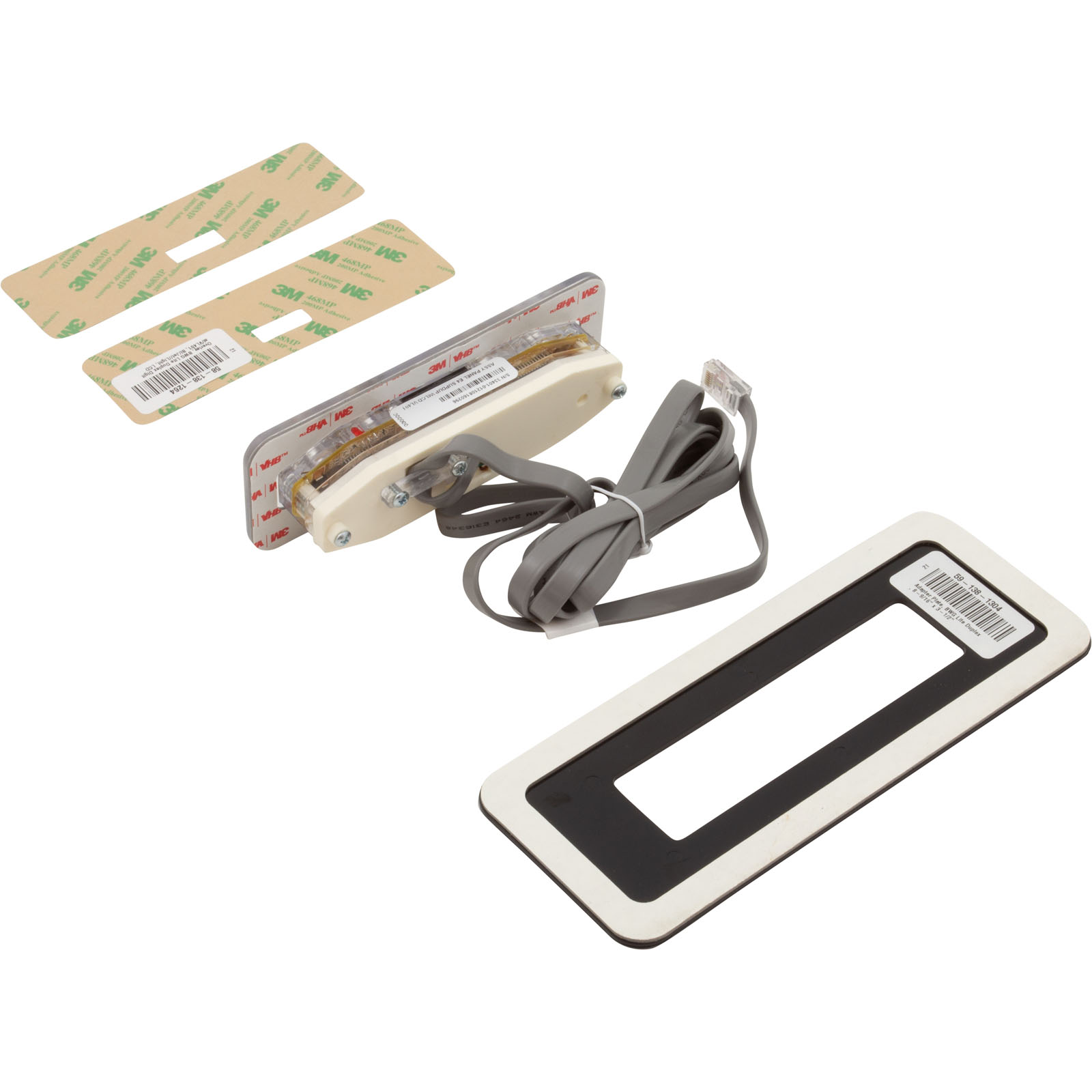

Balboa Water Group VS501Z Control System with 4.0kW Heater and VL401 Panel

Features:

• Controls a two-speed pump and a one-speed pump or blower
• 115/230v Ozone circuit
• 115/230v Circ Pump circuit (30GPM minimum)

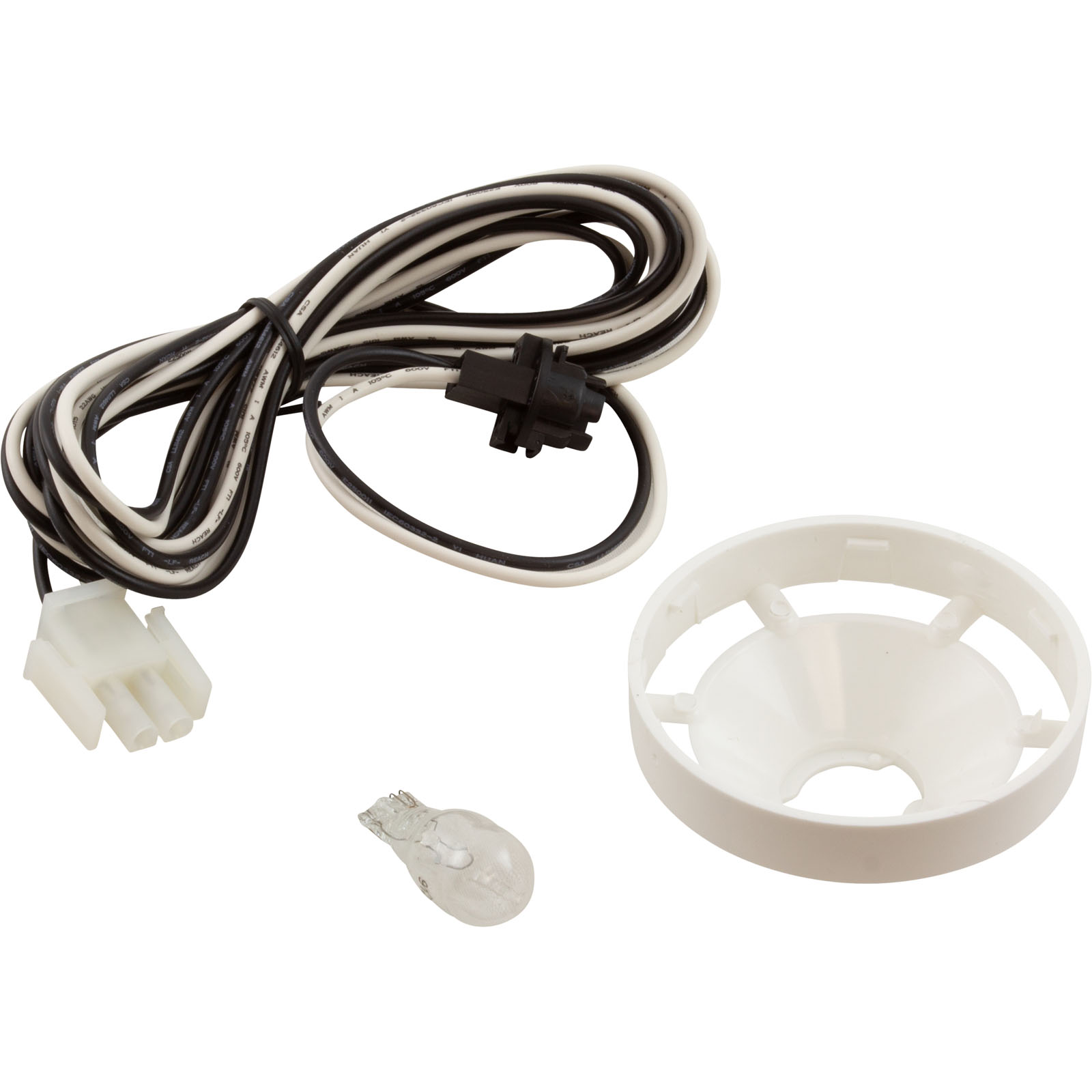

• 12v spa light circuit
• Patented M7™ technology
• Plumb on pressure or vacuum side

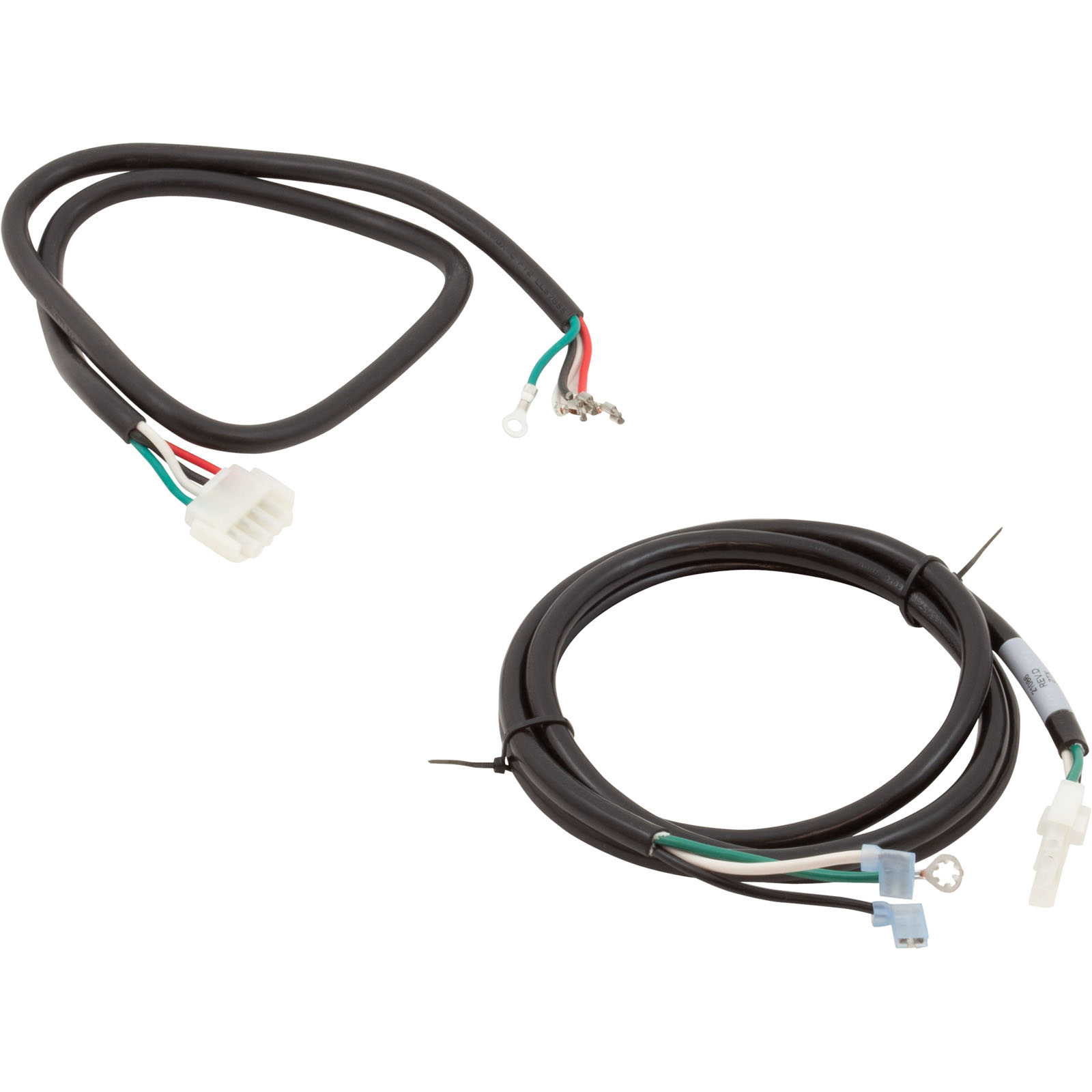

• Component cords included
• US & Canadian safety approvals

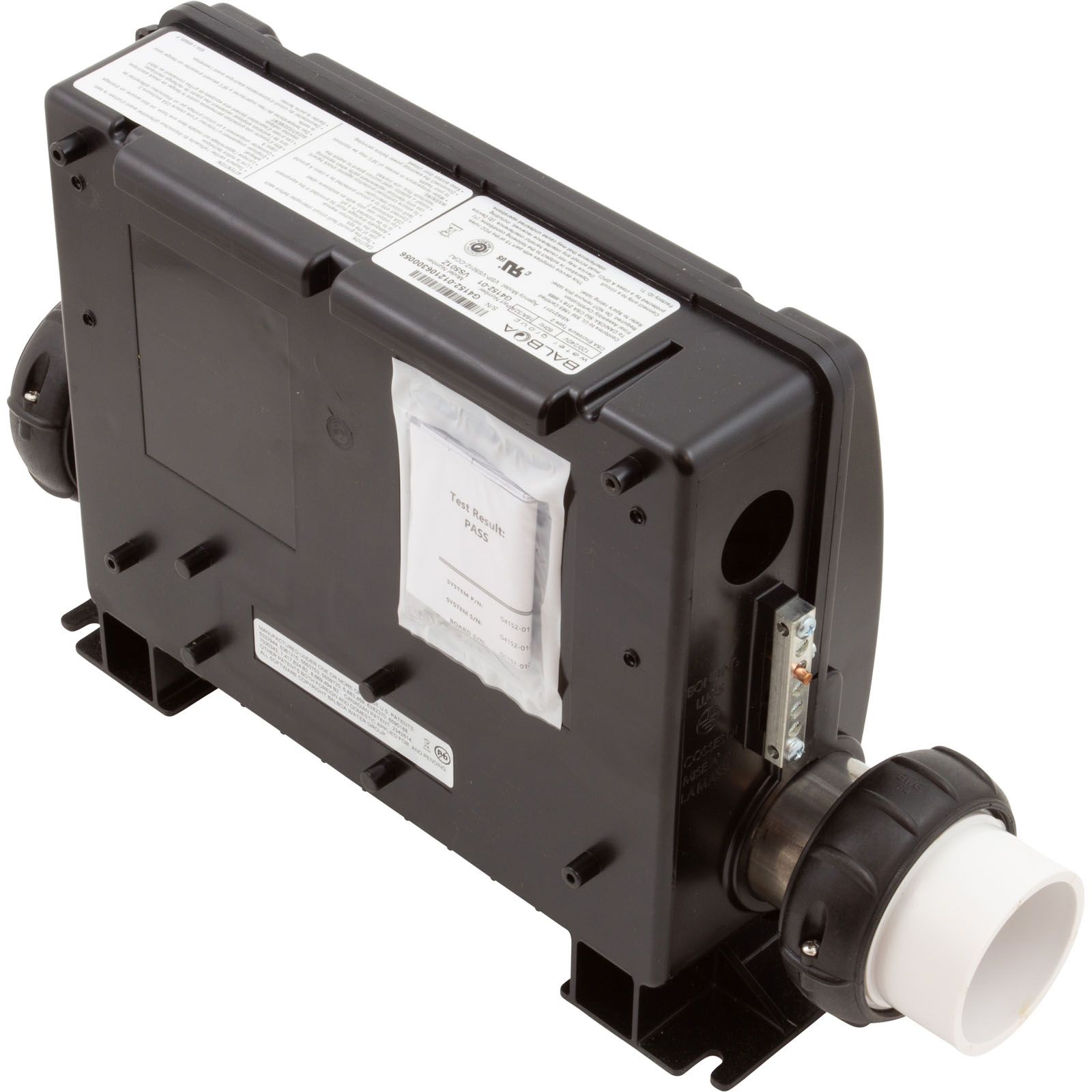

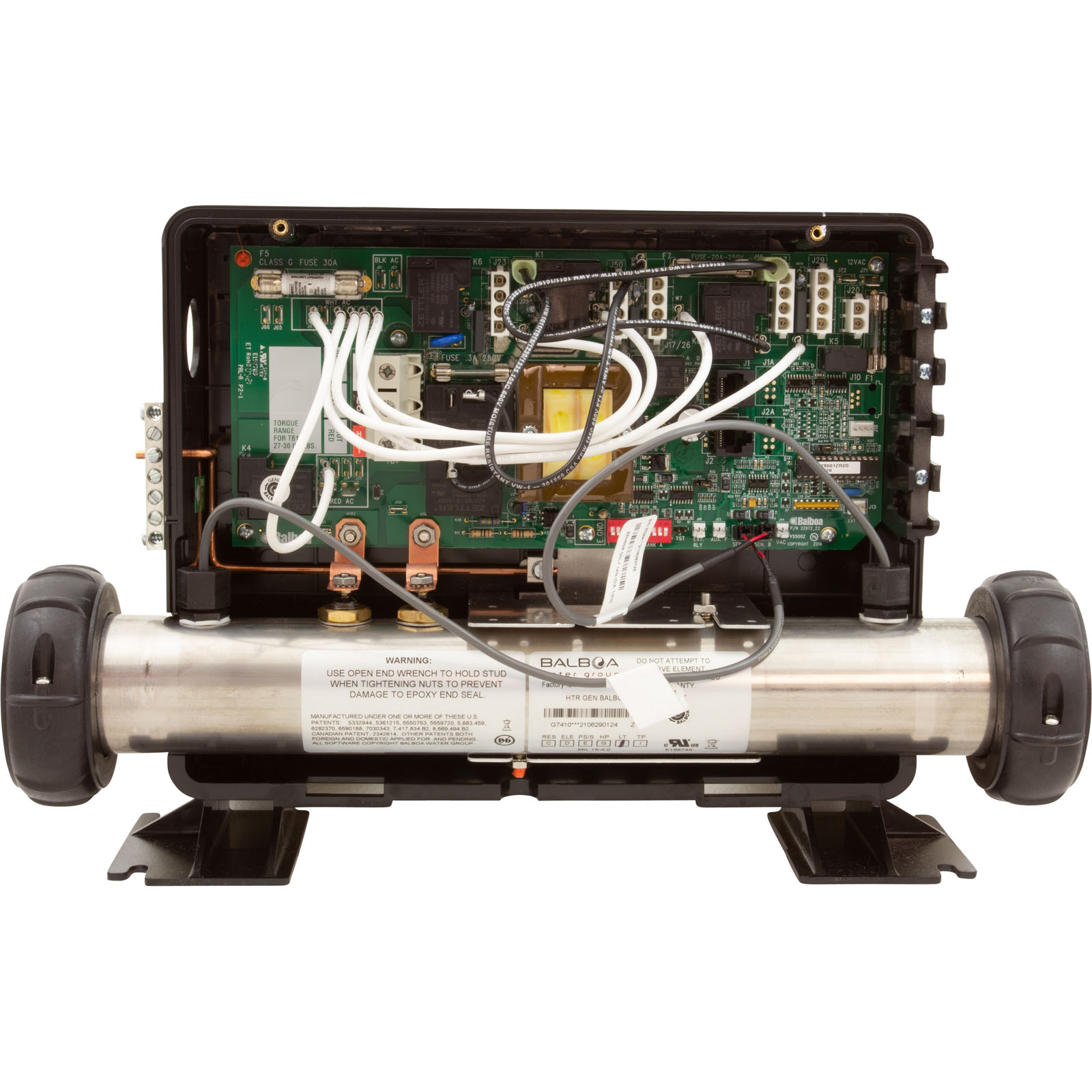

The Value Series (VS) family of Hot Tub Control Systems were designed using Balboa's patented M7™ temperature and flow sensor technology and a new universal control platform. The systems have a plastic enclosure to eliminate water intrusion. Connectors are built onto the circuit board minimizing wires and simplifying service.

The different models have controls for a single two-speed pump or an additional blower or pump. All models feature a convertible 115/230v power supply, a 1.1/4.0kW heater and can support mini, duplex, or standard digital control panels.

Control Box Dimensions

Height

Width

Depth
