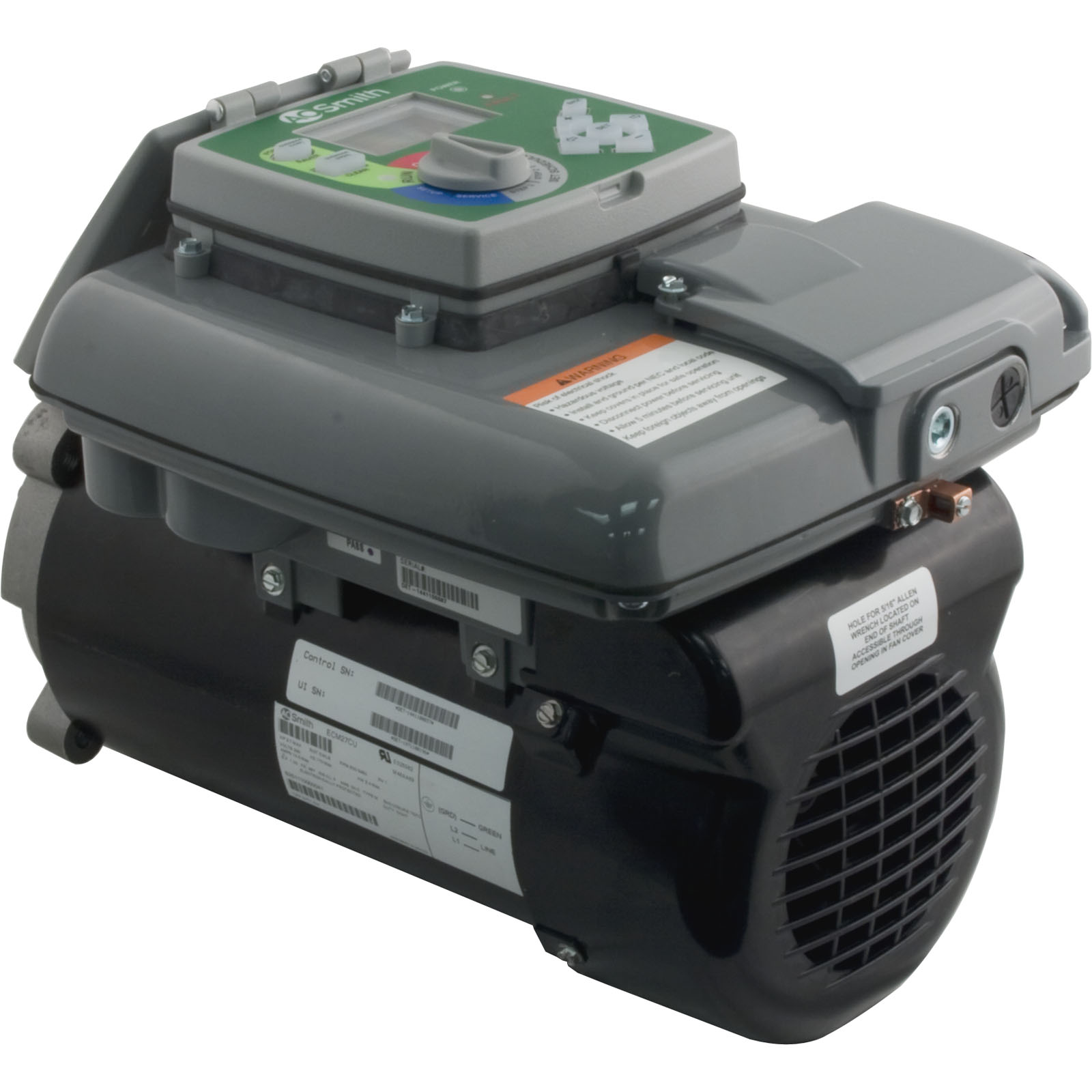

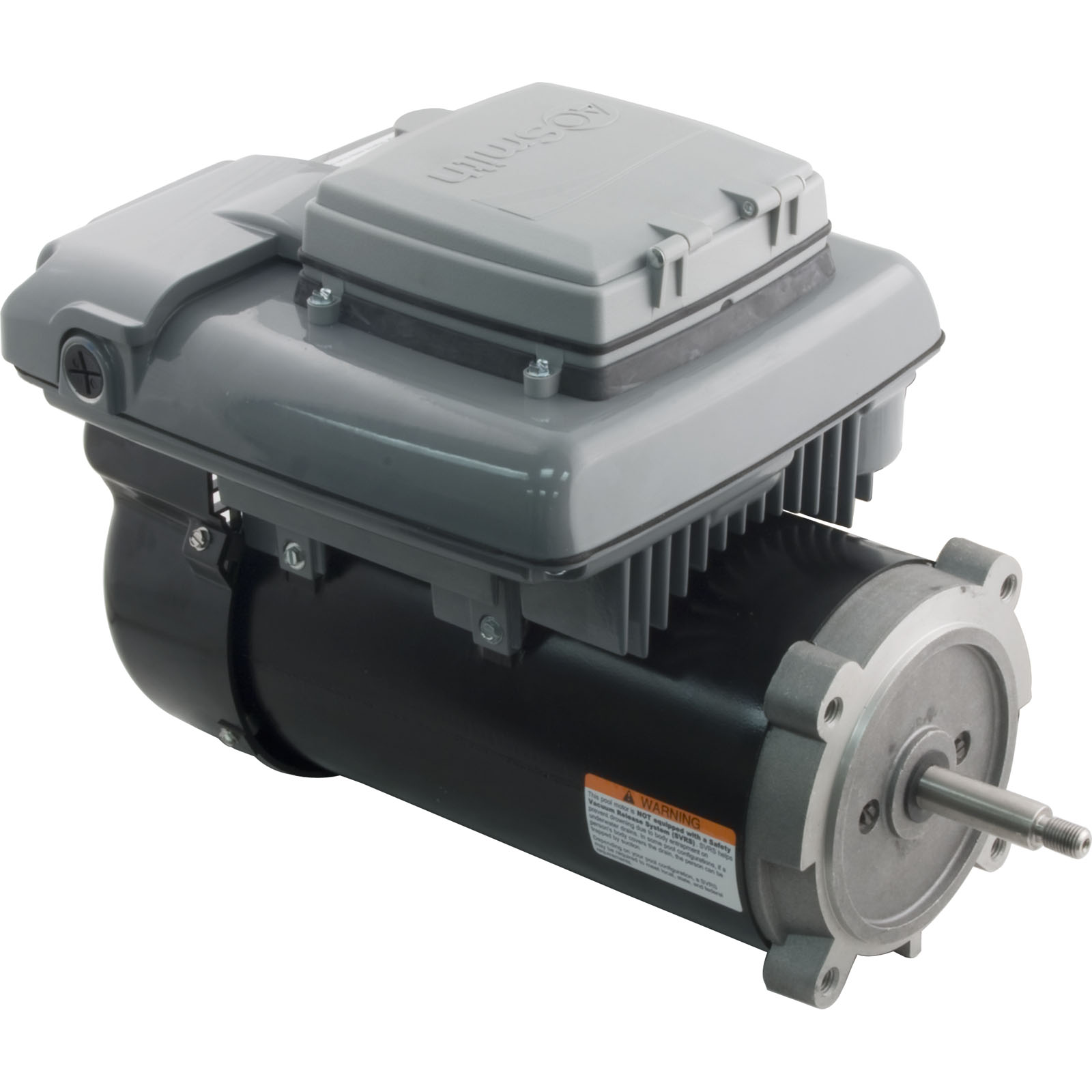

Motor, Century,0.75-2.7hp,230v,Var-Spd,48fr,C-Face Thd,V-Grn

Be the first to review this product

Manufacturer: AO Smith/Century/Regal Beloit

Availability: Out of stock

SKU: 35-126-1272

Manufacturer part number: ECM27CU

$988.81

Integrated Timer Interface
On- and Off-Board Mountable
Interface
Timer Mode
Manual Mode
Freeze Protection
Auxiliary Load Capacity
Configurable Prime Settings
Noise Reduction Design
Adjustable Contrast
Power Factor Correction

Factory Reset
Battery Backup - Program Saver

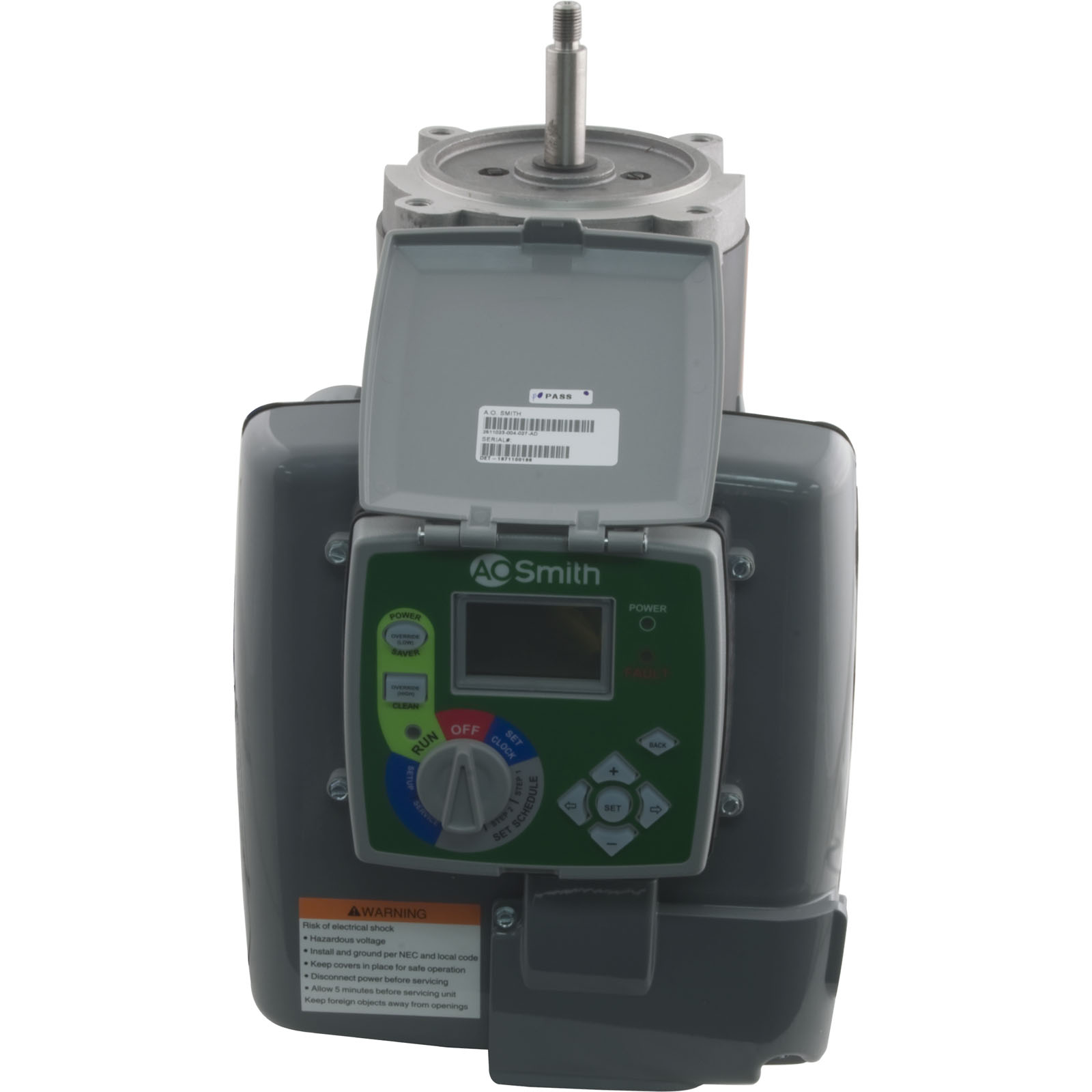

LCD Display with Backlight
Ball Bearing
TEFC
Rotation: CCWPE
Single Phase
303 Stainless Steel Shaft
Class F Insulation
50°C Ambient
UV and Rain-Proof Enclosure

	35-126-1272
THP	3/4 ~ 2.7
RPM	3450/600
Volts	230
Service Factor	1.0
Full Amps	10.5/0.5
Load Number	ECM27CU
Stock Flange	C-Face
Percent Energy Savings*	80%
Yearly $ Savings**	$1,318.05

*Savings over the equivalent single-speed motor.
**Calculated @ $.23 per Kilowatt hour, pumping same amount of water as a single-speed motor, eight hours per day.

The reasons a V-Green® premium-efficiency replacement motor can offer such impressive savings
are numerous including:

An integrated timer interface allows for easier installation and operation of a variable speed motor. The all-in-one design
reduces installation time and expense with no additional wiring required.

The amount of horsepower required to move the water through the pipes drops much more quickly than the speed. While it
may take one horsepower to move the water through the pipes on high speed, it only takes 1/8 horsepower to move one half
as much water through those same pipes on low speed. Even when run on low speed twice as long to pump the same amount
of water as on high speed, the lower horsepower results in significant energy savings.
